WinDelta CNC Control

The DynaPath WinDelta is a Windows ® PC-based CNC control suited for milling, turning, and grinding applications. New features include:

  • 2x USB for File Transfer or other Devices
  • 1x Ethernet Port for Networking and File Transfer
  • 2GB RAM for Faster Performance
  • 8GB Storage on Solid State Drive
  • 12.1" Touchscreen LCD for Intuitive Operation
  • 500 Block Look Ahead for Advanced Motion Control
  • Analog or Fully Digital Drive Interface Options
  • and more...

WinDelta Spec Sheet

Generic placeholder image

Many Panel Options

Several panel options are available depending on the preferred operating style: Mode Screen or Mode Switch. Operators experienced with either type can seamlessly operate on a WinDelta control.

D1 Mode Screen Panel for Milling Machines.
D2 Mode Switch Panel for Small Profile Machining Centers.

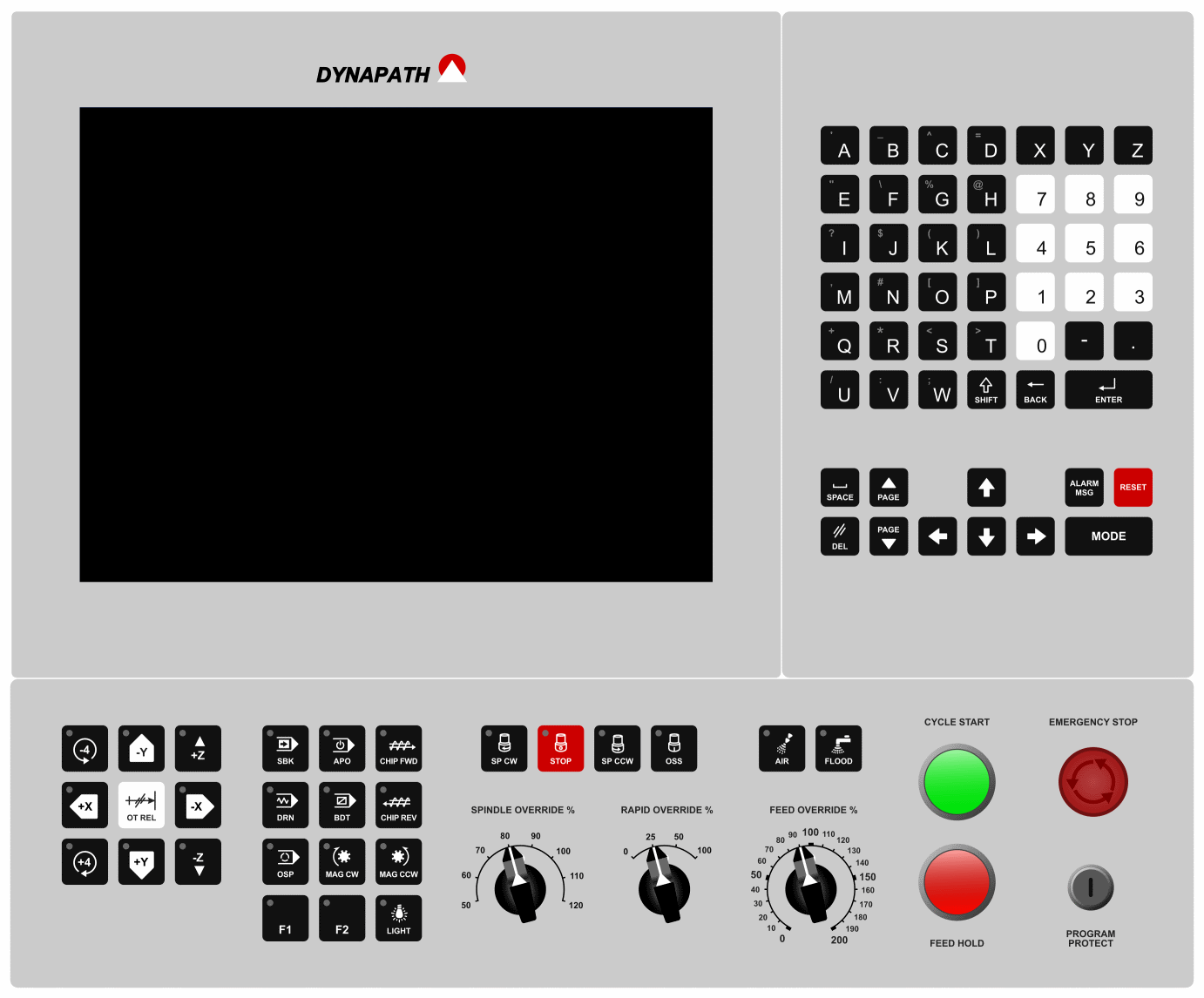

D5 Mode Screen Panel for Machining Centers.
D6 Mode Switch Panel for Machining Centers.

Generic placeholder image

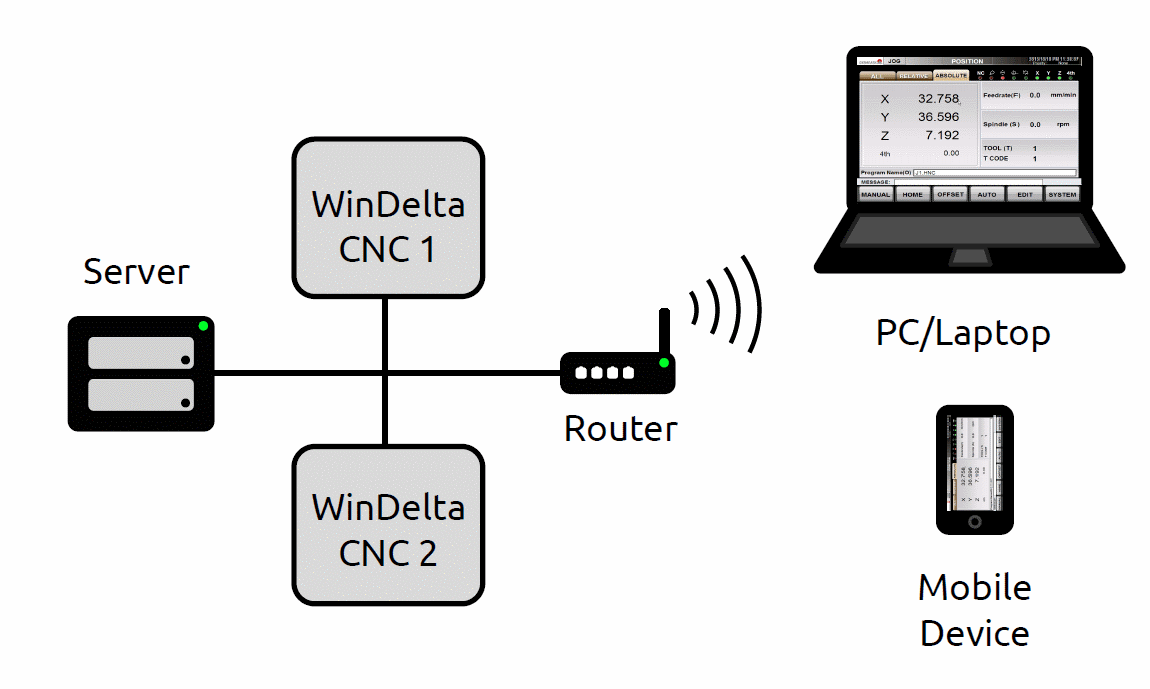

Networking and Remote Support

When connected to a network, WinDelta has FTP server functionality for network management of part programs. A built-in Remote tool enables diagnostics, monitoring, and troubleshooting over the network.
